Vehicle Details:
Tires: 225/70R19.5G All Position
Clearcoat Paint
Black Front Bumper w/2 Tow Hooks
Black Side Windows Trim and Black Front Windshield Trim
Black Door Handles
Exterior Mirrors w/Clearance Lights
Fixed Rear Window
Light Tinted Glass
Galvanized Steel/Aluminum Panels
Auto On/Off Reflector Daytime Running Headlamps w/Delay-Off
Cab Clearance Lights
40-20-40 Bench Folding Driver Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
Driver Seat
Manual Adjust 4-Way Driver Seat
40-20-40 Bench Folding Passenger Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
Passenger Seat
Manual Adjust 4-Way Front Passenger Seat
Vinyl Rear Seat
Manual Tilt Steering Column
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Oil Temperature, Transmission Fluid Temp, Engine Hour Meter and Trip Odometer
Rear Cupholder
Proximity Key For Push Button Start Only
Cruise Control w/Steering Wheel Controls
HVAC -inc: Underseat Ducts
Full Cloth Headliner
Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents
Day-Night Rearview Mirror
Passenger Visor Vanity Mirror
2 12V DC Power Outlets
Full Vinyl/Rubber Floor Covering
Storage Tray
USB Host Flip
Electronically Controlled Throttle
Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage
Delayed Accessory Power
Driver Information Center
Redundant Digital Speedometer
Analog Appearance
Manual Adjustable Front Head Restraints
Seats w/Vinyl Back Material
Front Armrest w/Cupholders
2 Way Rear Headrest Seat
Sentry Key Immobilizer
Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Radio Data System and External Memory Control
Integrated Roof Antenna
Streaming Audio
6 Speakers
4.44 Axle Ratio
GVWR: 18,000 lbs
50 State Emissions
Transmission w/Driver Selectable Mode and Oil Cooler
Rear-Wheel Drive
Engine Oil Cooler
730CCA Maintenance-Free Battery w/Run Down Protection
180 Amp Alternator
87 mph Maximum Speed
Towing Equipment -inc: Trailer Sway Control
Trailer Wiring Harness
10440# Maximum Payload
HD Shock Absorbers
Front Anti-Roll Bar and Rear HD Anti-Roll Bar
Hydraulic Power-Assist Steering
52 Gal. Fuel Tank
Single Stainless Steel Exhaust
Leading Link Front Suspension w/Coil Springs
Solid Axle Rear Suspension w/Leaf Springs
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs
Upfitter Switches
Mechanical Limited Slip Differential
Trim: Tradesman
Drivetrain: RWD
Side Impact Beams
Airbag Occupancy Sensor
Rear Child Safety Locks
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners

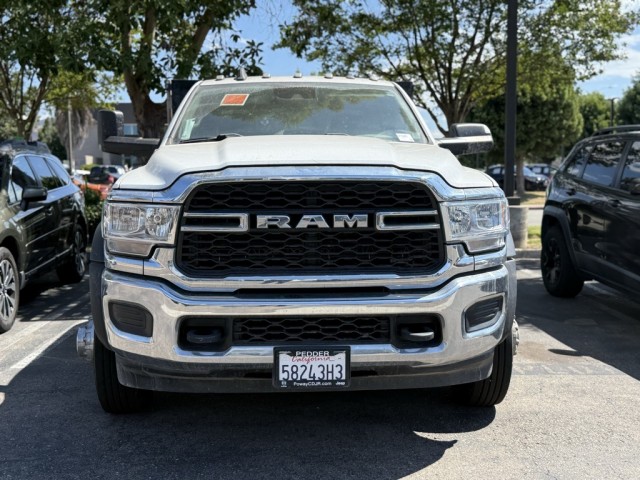

Vehicle Name: Ram 5500 Chassis Cab
Body Style: Crew Cab
Body Code: H
Drivetrain: Rear Wheel Drive
Passenger Capacity: 6
Base Curb Weight: 7565
Gross Axle Wt Rating - Front: 7000
Gross Axle Wt Rating - Rear: 13500
Curb Weight - Front: 4213
Curb Weight - Rear: 3352
Gross Vehicle Weight Rating Cap: 18000
Gross Combined Wt Rating: 26000
Dead Weight Hitch - Max Trailer Wt.: 5000
Dead Weight Hitch - Max Tongue Wt.: 500
Wt Distributing Hitch - Max Trailer Wt.: 18290
Wt Distributing Hitch - Max Tongue Wt.: 1829
Maximum Trailering Capacity: 18290
Engine Order Code: ETN
Engine Type: Intercooled Turbo Diesel I-6
Displacement: 6.7 L/408
Fuel System: Diesel Direct Injection
SAE Net Horsepower @ RPM: 360 @ 2800
SAE Net Torque @ RPM: 800 @ 1800
Trans Order Code: DF3
Trans Type: 6
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 3.23
Second Gear Ratio (:1): 1.84
Third Gear Ratio (:1): 1.41
Fourth Gear Ratio (:1): 1.00
Fifth Gear Ratio (:1): 0.82
Sixth Gear Ratio (:1): 0.63
Reverse Ratio (:1): 4.44
Trans Power Take Off: Yes
Trans PTO Access: Yes
Transfer Case Model: None
Transfer Case Power Take Off: Yes
Cold Cranking Amps @ 0° F (Primary): 1460
Cold Cranking Amps @ 0° F (2nd): 1460
Maximum Alternator Capacity (amps): 180
Engine Oil Cooler: Regular Duty
Suspension Type - Front: Leading Link
Suspension Type - Rear: Leaf
Spring Capacity - Front: 7000
Spring Capacity - Rear: 13500
Axle Type - Front: Non-Independent
Axle Type - Rear: Rigid Axle
Axle Capacity - Front: 7000
Axle Capacity - Rear: 13500
Axle Ratio (:1) - Front: 4.44
Axle Ratio (:1) - Rear: 4.44
Front Tire Order Code: TAE
Rear Tire Order Code: TAE
Spare Tire Order Code:
Front Tire Size: 225/70R19.5
Rear Tire Size: 225/70R19.5
Spare Tire Size:
Front Tire Capacity: 7940
Rear Tire Capacity: 15000
Revolutions/Mile @ 45 mph - Front: 651
Revolutions/Mile @ 45 mph - Rear: 651
Front Wheel Size: 19.5 X 6
Rear Wheel Size: 19.5 X 6
Spare Wheel Size:
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material:
Steering Type: Re-Circulating Ball
Turning Diameter - Curb to Curb: 59.7
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 15.3
Rear Brake Rotor Diam x Thickness: 15.3
Drum - Rear (Yes or ):
Rear Drum Diam x Width:
Fuel Tank Capacity, Approx: 52
Aux Fuel Tank Capacity, Approx:
Front Head Room: 40.9
Front Leg Room: 40.9
Front Shoulder Room: 65.9
Front Hip Room: 62.9
Second Head Room: 39.8
Second Leg Room: 40.2
Second Shoulder Room: 65.6
Second Hip Room: 62.7
Wheelbase: 197.4
Length, Overall: 289.2
Width, Max w/o mirrors: 86.9
Height, Overall: 81.4
Overhang, Front: 40.8
Overhang, Rear w/o bumper: 50.8
Cab to Axle: 83.9
Cab to End of Frame: 135.1
Ground Clearance, Front: 8.1
Ground Clearance, Rear: 8.1
Model Group: Ram Chassis
Vehicle Segment: Chassis
Vehicle Type: Crew Cab
Body Cab Style: Crew Cab
Engine Displacement Units: 6.7
Engine Camshaft: OHV
Engine Block Type: iron
Engine Cylinder Count: 6
Engine Valve Count: 4
Country of Origin: Mexico Ram Incomplete Vehicle
Chrome Appearance Group
Max Tow Package
Quick Order Package 2YA Tradesman
Safety Group
6 Speakers
AM/FM radio
Radio data system
Radio: Uconnect 3.0
Radio: Uconnect 4 w/8.4" Display
SiriusXM Radio Service
SiriusXM Satellite Radio
Air Conditioning
Power steering
Power windows
Rear Folding Seat
Traction control
4-Wheel Disc Brakes
ABS brakes
Adaptive Steering System
Bright Front Bumper
Dual front impact airbags
Front anti-roll bar
Occupant sensing airbag
Rear anti-roll bar
Electronic Stability Control
ParkView Rear Back-Up Camera
Chrome Tubular Side Steps
Delay-off headlights
Fully automatic headlights
Halogen Quad Headlamps
Adaptive Cruise Control w/Stop
Speed control
Dual rear wheels
87 mph Maximum Speed
Auto High Beam Headlamp Control
Black Exterior Mirrors
Black Wheel Flares
Cargo & CHMSL Lamp
Chrome Grille Surround
Exterior Mirrors Courtesy Lamps
Exterior Mirrors w/Heating Element
Exterior Mirrors w/Supplemental Signals
Front License Plate Bracket
Heated door mirrors
Manual DPF Regeneration
Matte Black Grille Surround
Matte Black Mesh w/Chrome Grille
Mirror Running Lights
Power Black Trailer Tow Mirrors
Power door mirrors
Selectable Tire Fill Alert
Trailer Tow Mirrors
Turn signal indicator mirrors
8.4" Touchscreen Display
Apple CarPlay
Auto-Dimming Rear-View Mirror
Black Key Fob
Courtesy Lamps
Door Sill Scuff Pads
Driver door bin
Electronically Controlled Throttle
For More Info, Call 800-643-2112
Front reading lights
Full Speed Forward Collision Warning Plus
Glove Box
Google Android Auto
Integrated Center Stack Radio
Integrated Voice Command w/Bluetooth
Lane Keep Assist
Map/Courtesy Lamp
Overhead Console
Overhead Cupholder Lamp
Passenger vanity mirror
Rear Dome Lamp
Rear View Auto Dim Mirror w/Display
Steering Wheel Mounted Audio Controls
Tachometer
Tilt steering wheel
Tire Fill Alert
Tire Pressure Information System
Urethane Shift Control
USB Host Flip
Voltmeter
2 Way Rear Headrest Seat
40/20/40 Split Bench Seat
Front Armrest w/Cupholders
HD Vinyl 40/20/40 Split Bench Seat
Manual Adjust 4-Way Driver Seat
Manual Adjust 4-Way Front Passenger Seat
Front Center Armrest w/Storage
Passenger door bin
Storage Tray
Trailer Brake Control
Trailer Light Check
19.5" x 6.0" Steel Wheels
Center Hub
Wheels: 19.5" x 6.0" Forged Aluminum Polished
Rain Sensitive Windshield Wipers
Variably intermittent wipers
4.44 Axle Ratio
4.89 Axle Ratio
**CLEAN CARFAX **
**ONE OWNER**
**BACK-UP CAMERA**
**BLUETOOTH**
**APPLE CARPLAY/GOOGLE ANDROID AUDIO**
Apple Car Play/Android Auto
Automatic Climate Control
Backup Camera
Driver Air Bag
A/C
AM/FM Stereo
ABS
Cruise Control
Locking/Limited Slip Differential
Child Safety Locks
Rear Wheel Drive
Dual Rear Wheels
Straight 6 Cylinder Engine
Turbocharged
Diesel Fuel
Daytime Running Lights
Power Door Locks
Power Steering
Adjustable Steering Wheel
Traction Control
6-Speed A/T
Power Windows
Intermittent Wipers
A/T
MP3 Capability
Variable Speed Intermittent Wipers
Immobilizer
Automatic Headlights
Passenger Vanity Mirror
Tow Hooks
Bluetooth Connection
Stability Control
Keyless Start
Auxiliary Audio Input
Passenger Air Bag Sensor
