Vehicle Details:
Wheels, 20" x 9" (50.8 cm x 22.9 cm) machined aluminum with Technical Gray pockets
Tires, 275/60R20SL all-terrain, blackwall
Tire carrier, lockable outside spare, winch-type mounted under frame at rear
Active aero shutters, upper
Fascia, front high-approach angle
LPO, Assist steps, tubular, Black (dealer-installed)
Headlamps, LED
IntelliBeam, automatic high beam on/off
Lamps, stop and tail, LED
Mirror caps, body-color
Glass, deep-tinted (all windows, except light-tinted glass on windshield and driver- and front passenger-side glass)
Glass, acoustic, laminated
Glass, windshield shade band
Door handles, body-color
Liftgate, rear power programmable, hands-free with emblem projection
Keyless start, push button
Seat adjusters, 10-way power includes 8-way power driver and front passenger seats with 2-way power lumbar
Seats, heated driver and front passenger
Console, floor with storage area and removable storage tray
Floor covering, color-keyed carpeting
Electronic Precision Shift
Steering wheel, leather-wrapped
Driver Information Center, 4.2" diagonal color display includes driver personalization
Rear Seat Reminder
Remote start
Universal Home Remote includes garage door opener, programmable
Theft-deterrent system, content, electrical, unauthorized entry
Wireless charging (Standard on vehicles built before 7-12-2021. Vehicles built on or after 7-12-2021, will have (00C) Not Equipped with Wireless Charging which removes Wireless Charging and its content. See dealer for details. The system wirelessly charges one compatible mobile device. Some phones have built-in wireless charging technology and others require a special adaptor/back cover. To check for phone or other device compatibility, see my.chevrolet.com/learnAbout/wireless-charging or consult your carrier.)
USB charging-only ports, 4, (2) located on rear of center console and (2) in 3rd row (1 left and 1 right side below quarter glass side window)
Defogger, rear-window electric
Power outlets, 2, 120-volt, located on the rear of the center seat and rear cargo area
Power outlet, front auxiliary, 12-volt, located in the center stack of instrument panel
Sill plates, bright, front and rear door
Mirror, inside rearview auto-dimming
Visors, driver and front passenger illuminated vanity mirrors, sliding
Assist handles, overhead, driver and front passenger, located in headliner
Assist handles, front passenger A-pillar and second row outboard B-pillar (Deleted when SEO (7X2) left- and right-hand spotlamps or SEO (7X3) left-hand spotlamp are ordered.)
Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions. On Police/Special Service vehicles, the control switch is located in the roof console in lieu of the driver- and passenger-side door switch with delayed entry feature.
Cargo management system
Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
Audio system feature, Bose 9-speaker stereo
Radio, HD
Engine, 5.3L EcoTec3 V8 with Dynamic Fuel Management, Direct Injection and Variable Valve Timing, includes aluminum block construction (355 hp [265 kW] @ 5600 rpm, 383 lb-ft of torque [518 Nm] @ 4100 rpm)
Rear axle, 3.23 ratio
Suspension Package, Premium Smooth Ride
GVWR, 7500 lbs. (3402 kg)
Automatic Stop/Start (Standard on vehicles built before 6-7-2021. Most vehicles built on or after 6-7-2021 equipped with a V8 engine will have (NSS) Not Equipped with Automatic Stop/Start, which removes Automatic Stop/Start, Engine control stop/start disable button and its content. See dealer for details.)
Engine control, stop/start system disable button, non-latching (Standard on vehicles built before 6-7-2021. Most vehicles built on or after 6-7-2021 equipped with a V8 engine will have (NSS) Not Equipped with Automatic Stop/Start, which removes Automatic Stop/Start, Engine control stop/start disable button and its content. See dealer for details.)
Engine air filtration monitor
Fuel, gasoline, E15
Transfer case, active, 2-speed electronic Autotrac with rotary controls, includes neutral position for dinghy towing
Differential, mechanical limited-slip
4-wheel drive
Air filter, heavy-duty
Cooling, external engine oil cooler, heavy-duty air-to-oil integral to driver side of radiator
Cooling, auxiliary transmission oil cooler, heavy-duty air-to-oil
Battery, 800 cold-cranking amps with 80 amp hour rating
Alternator, 220 amps
Trailering equipment includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way connector and 2" trailering receiver
Trailer sway control
Hitch Guidance
Recovery hooks, Red, horizontal-mounted
Skid plate, front
Suspension, front coil-over-shock with stabilizer bar
Suspension, rear multi-link with coil springs
Hill Decent Control (4WD models only.)
Steering, power,
Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
Exhaust, single system, single-outlet
Mechanical Jack with tools
Trim: Z71
Drivetrain: 4WD
Hill Start Assist
StabiliTrak, stability control system with brake assist, includes traction control
Daytime Running Lamps, LED
Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
Airbags, Frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Driver inboard seat-mounted side-impact airbag; Head-curtain airbags for all rows in outboard seating positions (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Following Distance Indicator
Door locks, rear child security, manual
LATCH system (Lower Anchors and Tethers for CHildren), for child restraint seats lower anchors and top tethers located in all second-row seating positions (Deleted when (ATZ) second row seat delete is ordered.)
Warning tones headlamp on, driver and right-front passenger seat belt unfasten and turn signal on

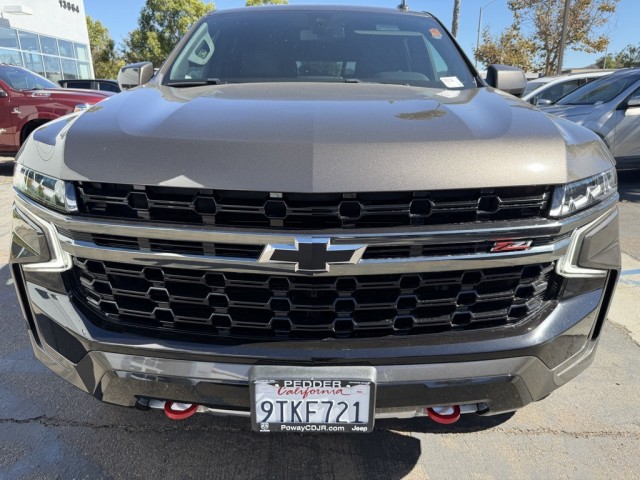

Vehicle Name: Chevrolet Tahoe
Body Style: Sport Utility Vehicle
Body Code: - TBD -
Drivetrain: Four Wheel Drive
Passenger Capacity: 8
Gross Axle Wt Rating - Front: 3700
Gross Axle Wt Rating - Rear: 4300
Curb Weight - Front: 2887
Curb Weight - Rear: 2657
Gross Vehicle Weight Rating Cap: 7500
Fuel Economy Est-Combined: 18
EPA Fuel Economy Est - City: 16
EPA Fuel Economy Est - Hwy: 20
Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
Gross Combined Wt Rating: 14000
Dead Weight Hitch - Max Trailer Wt.: 5000
Dead Weight Hitch - Max Tongue Wt.: 500
Wt Distributing Hitch - Max Trailer Wt.: 7700
Wt Distributing Hitch - Max Tongue Wt.: 770
Fifth Wheel Hitch - Max Trailer Wt.:
Fifth Wheel Hitch - Max Tongue Wt.:
Engine Order Code: L84
Engine Type: Gas V8
Displacement: 5.3L/- TBD -
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 355 @ 5600
SAE Net Torque @ RPM: 383 @ 4100
Trans Order Code: MQC
Trans Type: 10
Trans Description Cont.: Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): 4.69
Second Gear Ratio (:1): 2.98
Third Gear Ratio (:1): 2.14
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.27
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Ninth Gear Ratio (:1): 0.69
Tenth Gear Ratio (:1): 0.63
Reverse Ratio (:1): 4.86
Clutch Size:
Trans Power Take Off:
Trans PTO Access:
Transfer Case Model:
Transfer Case Gear Ratio (:1), High: 1
Transfer Case Gear Ratio (:1), Low: - TBD -
Transfer Case Power Take Off:
Cold Cranking Amps @ 0° F (Primary): 800
Cold Cranking Amps @ 0° F (2nd):
Maximum Alternator Capacity (amps): - TBD -
Maximum Alternator Watts:
Total Cooling System Capacity: - TBD -
Engine Oil Cooler:
Frame Type: - TBD -
Suspension Type - Front: Independent
Suspension Type - Rear: Multi-Link
Spring Capacity - Front: - TBD -
Spring Capacity - Rear: - TBD -
Axle Type - Front: Independent
Axle Type - Rear: - TBD -
Axle Capacity - Front: - TBD -
Axle Capacity - Rear: - TBD -
Axle Ratio (:1) - Front: 3.23
Axle Ratio (:1) - Rear: 3.23
Shock Absorber Diameter - Front: - TBD -
Shock Absorber Diameter - Rear: - TBD -
Stabilizer Bar Diameter - Front: - TBD -
Stabilizer Bar Diameter - Rear: - TBD -
Front Tire Order Code: QAE
Rear Tire Order Code: QAE
Spare Tire Order Code: XCQ
Front Tire Size: 275/60R20
Rear Tire Size: 275/60R20
Spare Tire Size: P265/70R17
Front Tire Capacity: - TBD -
Rear Tire Capacity: - TBD -
Spare Tire Capacity: - TBD -
Revolutions/Mile @ 45 mph - Front: N/A
Revolutions/Mile @ 45 mph - Rear: N/A
Revolutions/Mile @ 45 mph - Spare: N/A
Front Wheel Size: 20 x 9
Rear Wheel Size: 20 x 9
Spare Wheel Size: 17 x - TBD -
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Pwr
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb: 39.7
Turning Diameter - Wall to Wall: N/A
Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line):
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 17 x - TBD -
Rear Brake Rotor Diam x Thickness: 17 x - TBD -
Drum - Rear (Yes or ):
Rear Drum Diam x Width:
Fuel Tank Capacity, Approx: 24
Aux Fuel Tank Capacity, Approx:
Fuel Tank Location: - TBD -
Aux Fuel Tank Location:
Front Head Room: 42.3
Front Leg Room: 44.5
Front Shoulder Room: 66.0
Front Hip Room: 61.5
Second Head Room: 38.9
Second Leg Room: 42.0
Second Shoulder Room: 64.8
Second Hip Room: 61.3
Third Head Room: 38.2
Third Leg Room: 36.7
Third Shoulder Room: 61.7
Third Hip Room: 49.4
Wheelbase: 120.9
Length, Overall: 210.7
Width, Max w/o mirrors: - TBD -
Height, Overall: 75.9
Overhang, Front: - TBD -
Overhang, Rear w/bumper: - TBD -
Ground to Top of Load Floor: - TBD -
Ground Clearance, Front: - TBD -
Ground Clearance, Rear: - TBD -
Rear Door Type: Liftgate
Rear Door Opening Height: - TBD -
Rear Door Opening Width: - TBD -
Side Door Type:
Side Door Opening Height:
Side Door Opening Width:
Step Up Height - Front: - TBD -
Step Up Height - Side:
Cargo Area Length @ Floor to Console: - TBD -
Cargo Area Length @ Floor to Seat 1: - TBD -
Cargo Area Length @ Floor to Seat 2: - TBD -
Cargo Area Length @ Floor to Seat 3: - TBD -
Cargo Area Length @ Floor to Seat 4:
Cargo Area Width @ Beltline: - TBD -
Cargo Box Width @ Wheelhousings: 49.4
Cargo Box (Area) Height: - TBD -
Cargo Volume to Seat 1: 122.9
Cargo Volume to Seat 2: 72.6
Cargo Volume to Seat 3: 25.5
Cargo Volume to Seat 4:
Model Group: Tahoe
Vehicle Segment: Large Sport Utility
Vehicle Type: Sport Utility
Engine Displacement Units: 5.3
Engine Camshaft: OHV
Engine Block Type: aluminum
Engine Cylinder Count: 8
Engine Valve Count: 2
Country of Origin: United States Chevrolet Active MPV
License Plate Front Mounting Package
Preferred Equipment Group 2Z7
9 Speakers
AM/FM radio: SiriusXM with 360L
Bose 9-Speaker Stereo Audio System Feature
HD Radio
Premium audio system: Chevrolet Infotainment 3
Radio: Chevrolet Infotainment 3 Plus System
SiriusXM Radio w/360L
Air Conditioning
Automatic temperature control
Front dual zone A/C
Rear air conditioning
Rear window defroster
Hands-Free Rear Power Programmable Liftgate
Memory seat
Power driver seat
Power steering
Power windows
Remote keyless entry
Remote Start
Steering wheel mounted audio controls
Universal Home Remote
Four wheel independent suspension
Premium Smooth Ride Suspension
Speed-sensing steering
Traction control
4-Wheel Disc Brakes
ABS brakes
Dual front impact airbags
Dual front side impact airbags
Emergency communication system: OnStar and Chevrolet connected services capable
Front anti-roll bar
Low tire pressure warning
Occupant sensing airbag
Overhead airbag
Rear anti-roll bar
Power Liftgate
Brake assist
Electronic Stability Control
Hill Descent Control
Auto High-beam Headlights
Delay-off headlights
Fully automatic headlights
LED Daytime Running Lamps
Driver & Front Outboard Passenger Airbags
Panic alarm
Security system
Speed control
2-Speed Active Electronic AutoTrac Transfer Case
Black Tubular Assist Steps
Bright Front & Rear Door Sill Plates
Bumpers: body-color
Front High-Approach Angle Fascia
Heated door mirrors
Power door mirrors
Roof rack: rails only
Spoiler
1st & 2nd Row Color-Keyed Carpeted Floor Mats
2 USB Data Ports
Apple CarPlay/Android Auto
Auto-Dimming Inside Rear-View Mirror
Auto-dimming Rear-View mirror
Color-Keyed Carpeting Floor Covering
Compass
Driver door bin
Driver vanity mirror
Front reading lights
Garage door transmitter
Illuminated entry
Infotainment Display
Leather steering wheel
Leather-Wrapped Steering Wheel
Memory Settings for Driver
Outside temperature display
Overhead console
Passenger vanity mirror
Rear reading lights
Rear seat center armrest
Tachometer
Telescoping steering wheel
Tilt steering wheel
Trip computer
Voltmeter
10-Way Power Driver & Passenger Seat Adjusters
3rd row seats: split-bench
Floor Console w/Storage Area
Front Bucket Seats
Front Center Armrest
Front High-Back Reclining Bucket Seats
Heated Driver & Front Passenger Seats
Heated front seats
Leather Seat Trim
Power passenger seat
Split folding rear seat
Passenger door bin
Red Horizontal-Mounted Recovery Hooks
Alloy wheels
Set of 4 Wheel Locks (LPO)
Wheels: 20" x 9" Machined Aluminum
Rain sensing wipers
Rear window wiper
Variably intermittent wipers
3.23 Rear Axle Ratio
**CLEAN CARFAX **
**ONE OWNER**
**BACK-UP CAMERA**
**BLUETOOTH**
**APPLE CARPLAY/GOOGLE ANDROID AUDIO**
Apple Car Play/Android Auto
Automatic Climate Control
Backup Camera
Driver Air Bag
Passenger Air Bag
Front Side Air Bag
Front Head Air Bag
Rear Head Air Bag
Climate Control
Multi-Zone A/C
A/C
Rear A/C
Security System
AM/FM Stereo
ABS
Cruise Control
Rear Defrost
Locking/Limited Slip Differential
Child Safety Locks
Four Wheel Drive
8 Cylinder Engine
Floor Mats
Gasoline Fuel
Daytime Running Lights
Keyless Entry
Power Door Locks
Heated Mirrors
Power Mirror(s)
Running Boards/Side Steps
3rd Row Seat
Power Driver Seat
Power Passenger Seat
Pass-Through Rear Seat
Leather Seats
Bucket Seats
Power Steering
Adjustable Steering Wheel
Tires - Front All-Terrain
Tires - Rear All-Terrain
Conventional Spare Tire
Traction Control
Aluminum Wheels
Power Windows
Intermittent Wipers
A/T
Premium Sound System
Satellite Radio
MP3 Capability
Heated Front Seat(s)
Privacy Glass
Variable Speed Intermittent Wipers
Rain Sensing Wipers
Steering Wheel Audio Controls
Immobilizer
Luggage Rack
Auto-Dimming Rearview Mirror
Driver Vanity Mirror
Passenger Vanity Mirror
Driver Illuminated Vanity Mirror
Passenger Illuminated Visor Mirror
Rear Parking Aid
Driver Adjustable Lumbar
Passenger Adjustable Lumbar
Seat Memory
Leather Steering Wheel
Remote Trunk Release
Tow Hitch
Tow Hooks
Tire Pressure Monitor
Universal Garage Door Opener
Bluetooth Connection
Telematics
Remote Engine Start
Back-Up Camera
Stability Control
Brake Assist
Keyless Start
Auxiliary Audio Input
Passenger Air Bag Sensor
WiFi Hotspot
10-Speed A/T
Smart Device Integration
Driver Restriction Features
Front Collision Mitigation
Front Collision Warning
Automatic Highbeams
Requires Subscription
